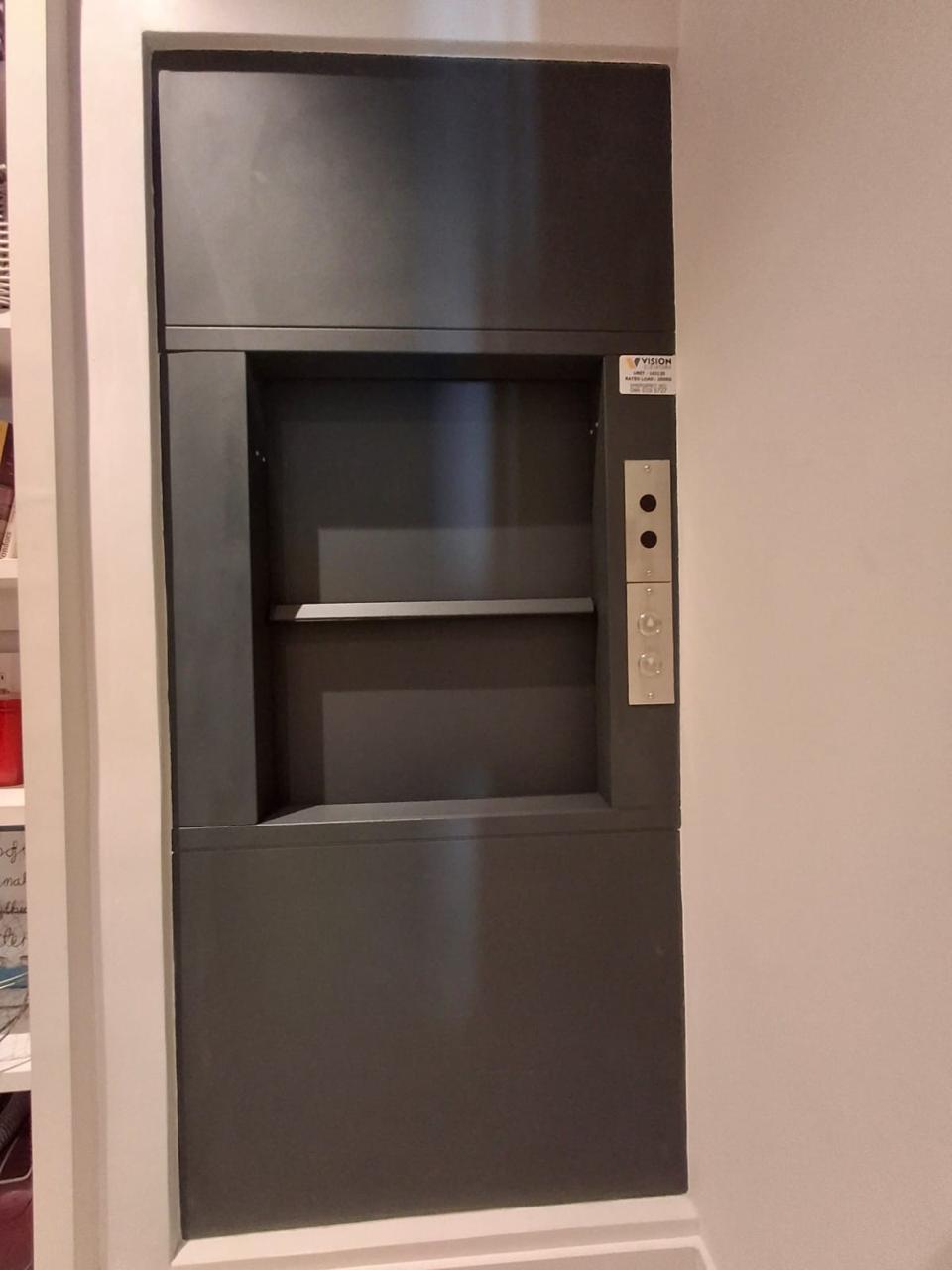

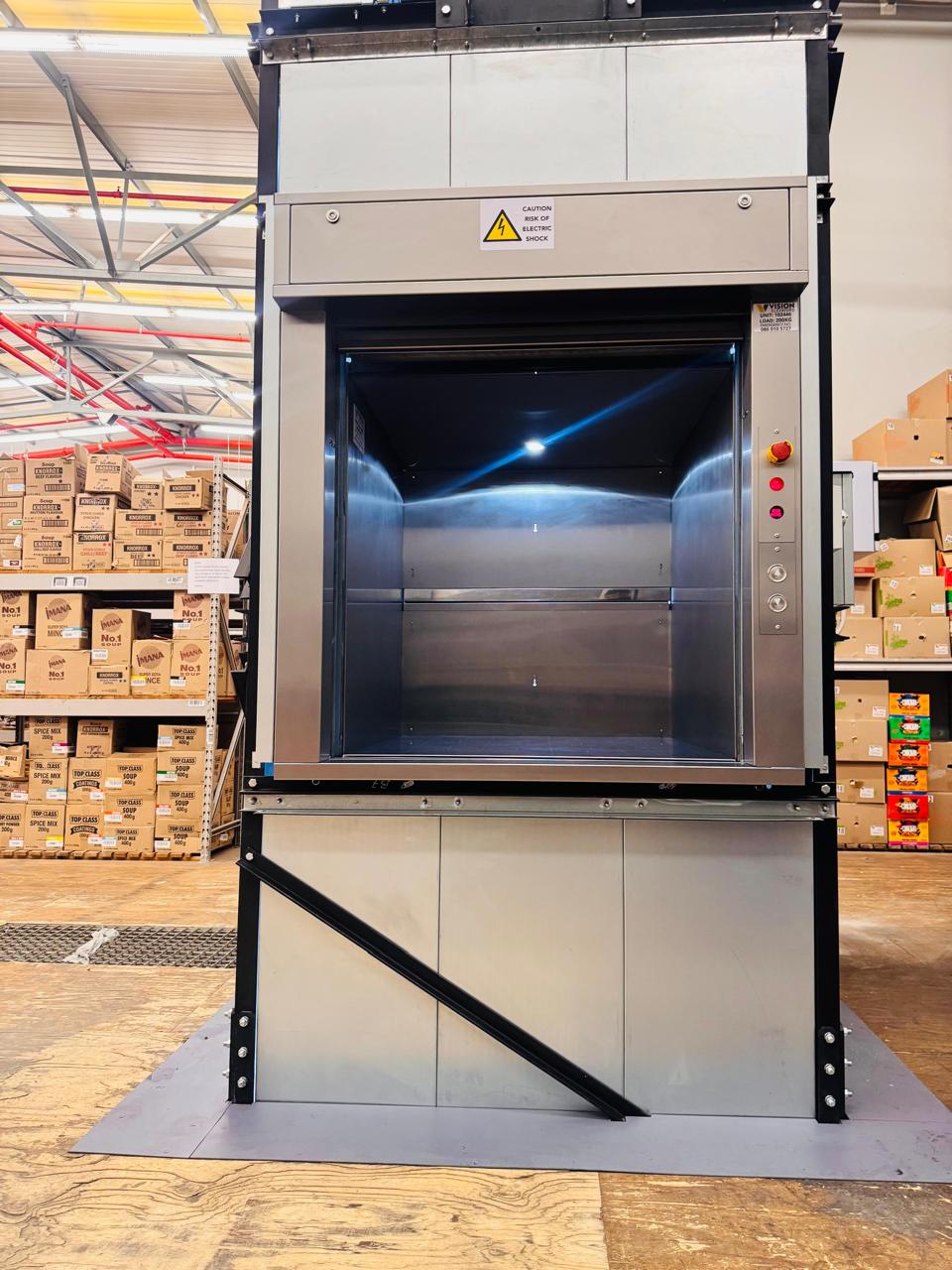

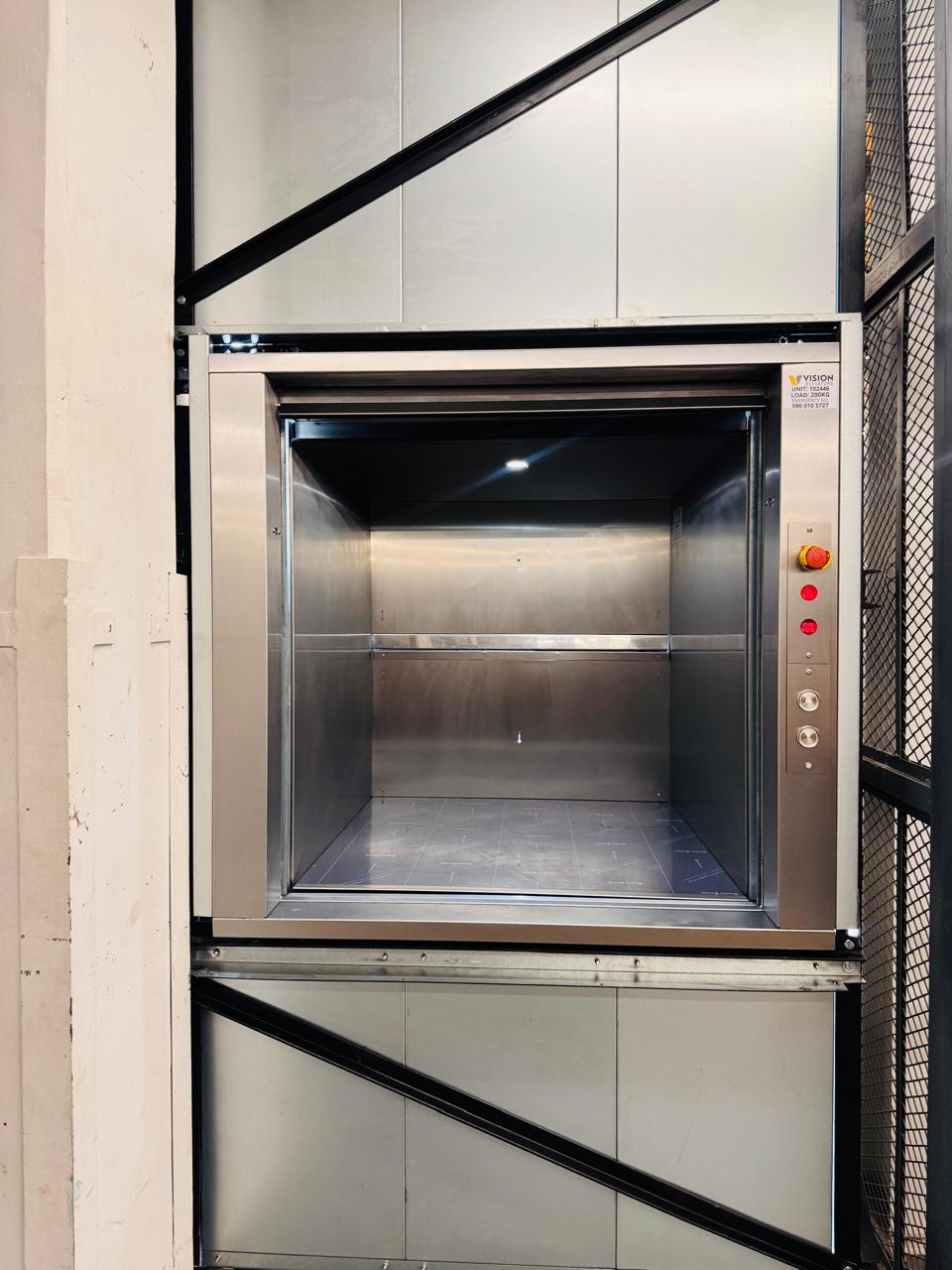

Our dumbwaiters can be used wherever there is a need to move small quantities of goods from one level to another and are perfect for restaurants, libraries, hotels and similar industries.
Elegant and ultra efficient, our dumbwaiters makes serving and cleaning up fast and effortless.
KEY DETAILS
| CAPACITY | 100kg – 500kg |
| SPEED | 0.1m/s – 0.2m/s |
| TRAVEL HEIGHT | 1-10m |
| MAX NUMBER OF FLOORS | 8 |
| DOOR ORIENTATION | Inline or Opposite |
| DOOR OPERATION | Manual |
| CAR DOOR TYPES | • Bi-parting shutters • None |
| LANDING DOOR TYPES | Bi-parting shutters |
| MACHINE LOCATION OPTIONS | MRL (machine room less) |
| DRIVE TYPES | Positive drum drive |
| USE | Moving of goods only |
| FINISHES | • Galvanised mild steel • Powder coated mild steel • Stainless steel |
| SERVING HEIGHT | Floor level or 800mm |
Optional Extras
| Arrival bell on car |
| Alarm bell for warning if doors have been open too long |
| Intercom between landings |
| Segmented display on landings |
| VVVF control |
| Shelf in car (Maximum load 100kg) |
